SoundQubed HDX-SQTW22

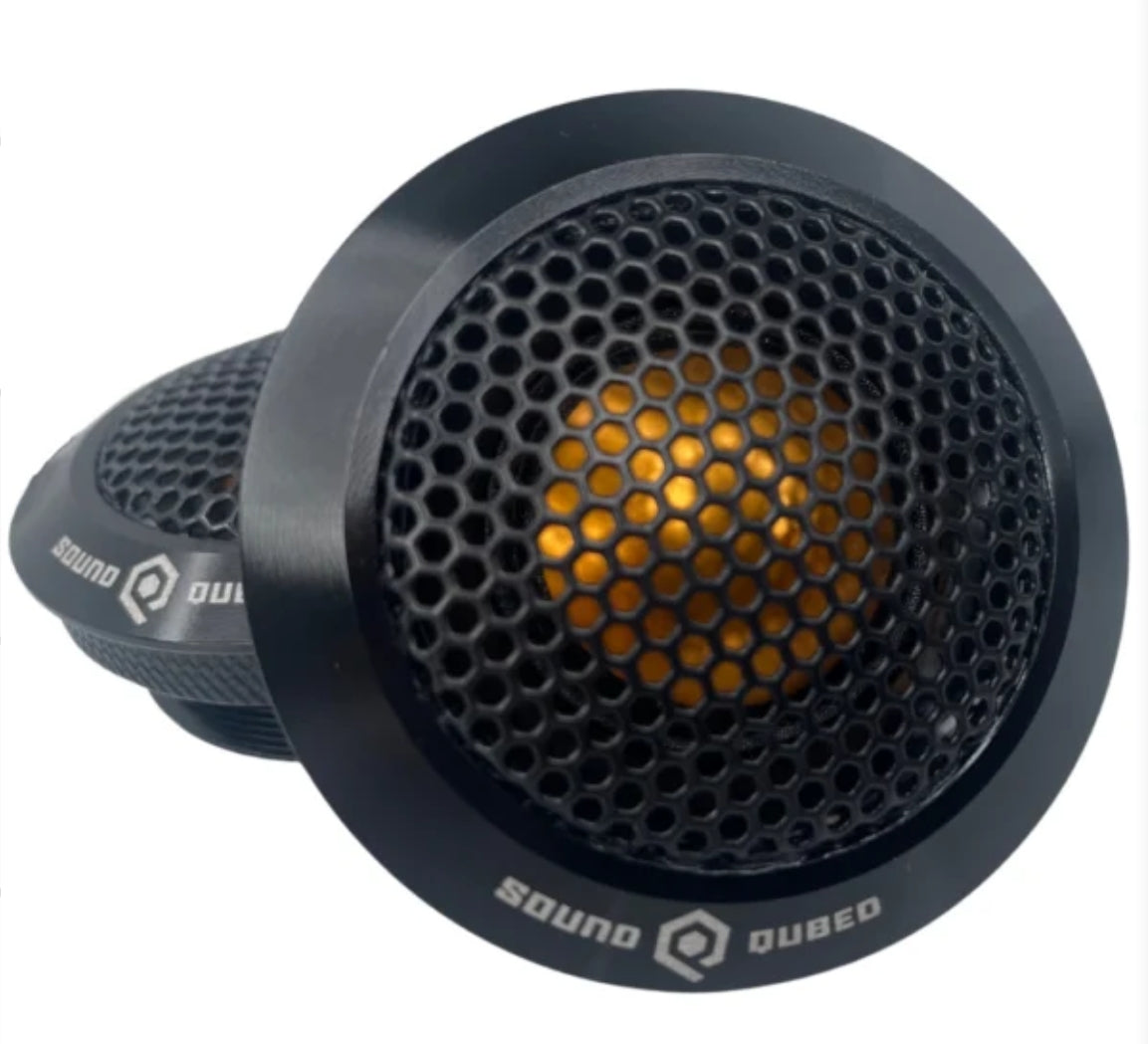

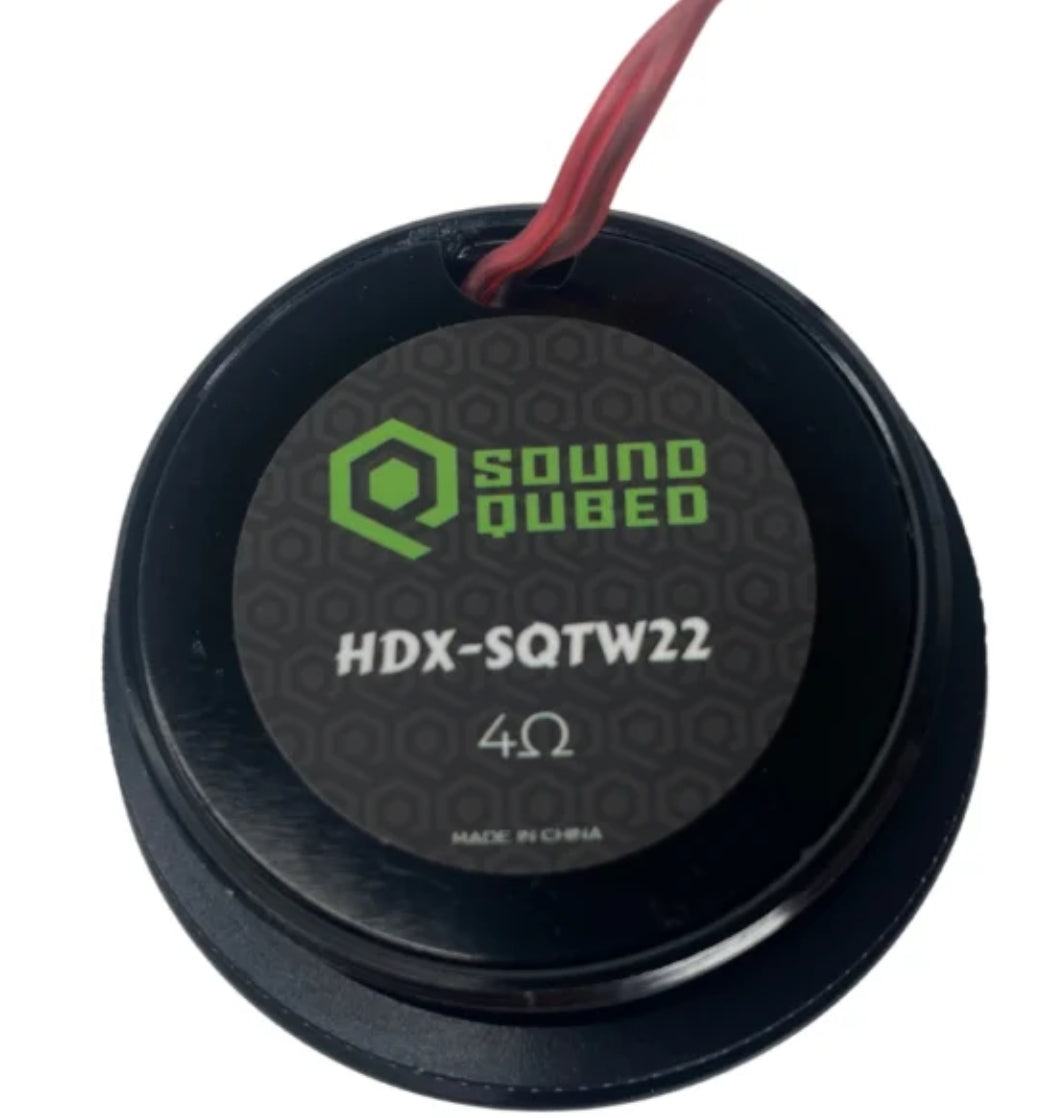

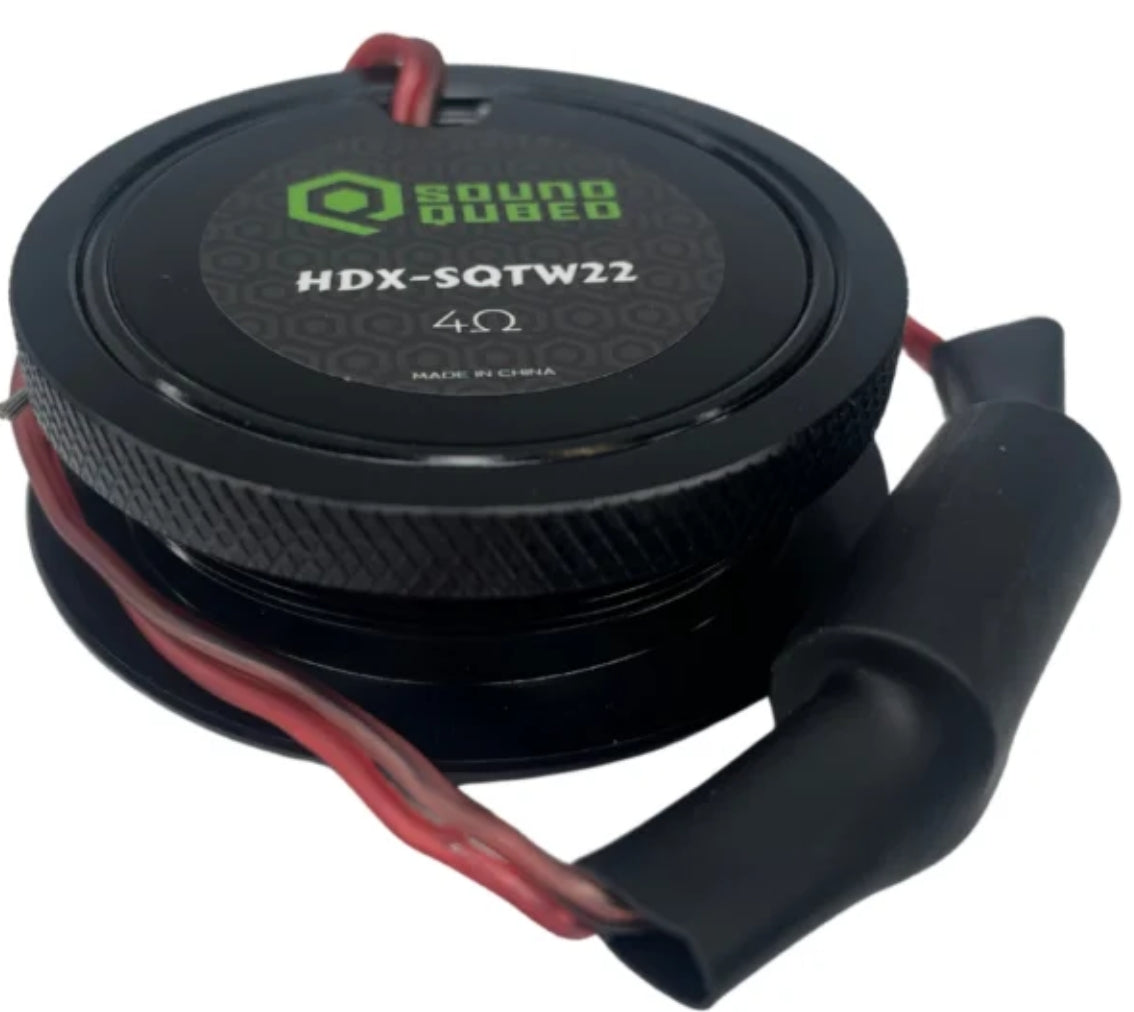

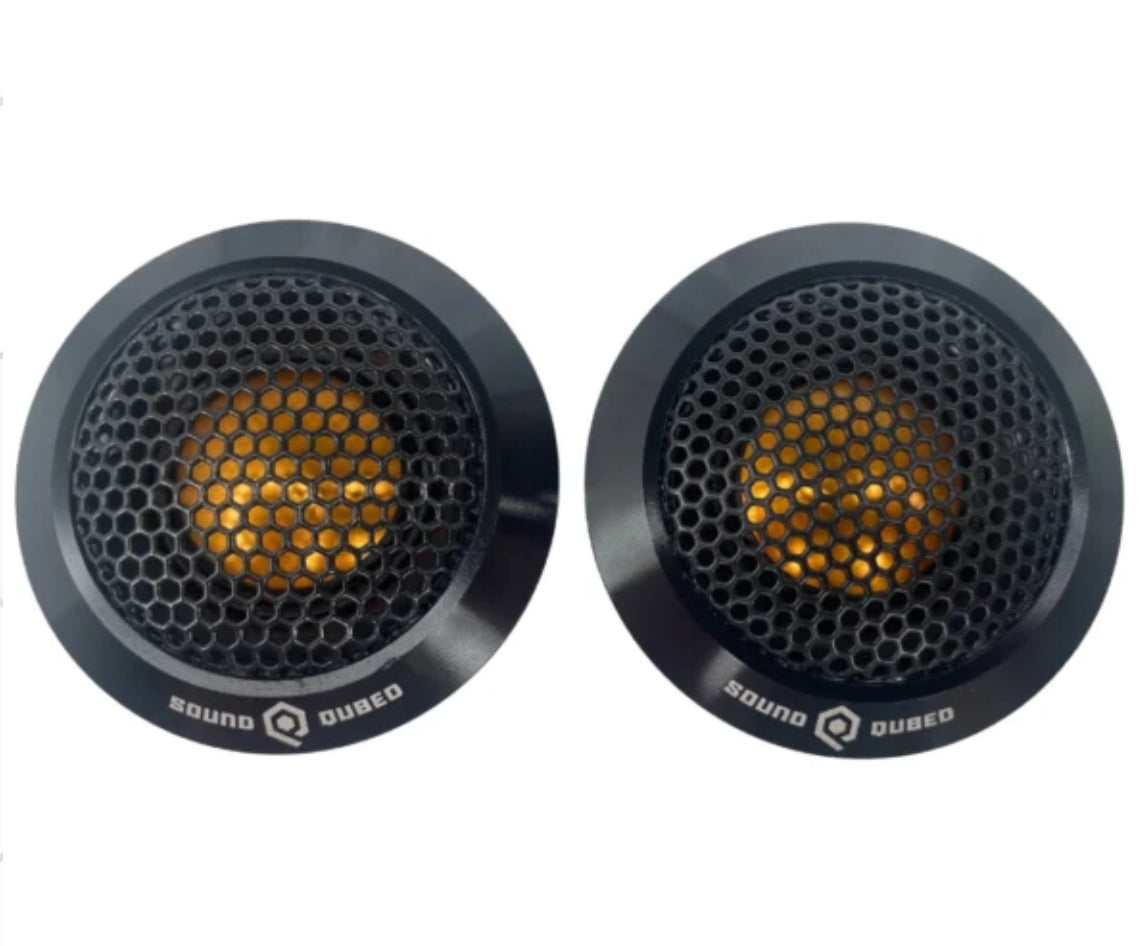

SoundQubed HDX-SQTW22 Titanium Neo Tweeters

Add dedicated high-frequency drivers to your car-audio system with the SoundQubed HDX-SQTW22 tweeter pair. Part of the HDX Series, these titanium neo tweeters combine black aluminum housings with a shallow 0.65-inch mounting depth for installations where space and appearance both matter.

Features and Dimensions

• Quantity: One pair, two tweeters
• Model: SoundQubed HDX-SQTW22
• Design: Titanium neo tweeter
• Housing: Black aluminum
• Nominal size: Marketed as 2.25-inch; manufacturer overview describes a 2.2-inch tweeter
• Overall diameter: 2.28 inches
• Mounting cutout: 1.85 inches
• Mounting depth: 0.65 inch
• Manufacturer-listed frequency capability: 920Hz–20kHz

Power and Crossover Planning

SoundQubed describes approximately 30 watts as sufficient for these tweeters to perform in an appropriate setup. This statement is not a published RMS or maximum power-handling rating and should not be treated as one.

The listed 920Hz frequency capability is not a recommended high-pass crossover setting. Use appropriate tweeter filtering and follow the product's installation instructions when selecting a crossover frequency, slope, and amplifier settings. Do not feed these tweeters an unfiltered full-range signal. Confirm rated impedance and power handling before matching an amplifier or passive crossover.

Check Fitment Before Cutting

Use the actual 2.28-inch overall diameter, 1.85-inch cutout, and 0.65-inch mounting depth to plan your installation rather than relying on the nominal size alone. Check panel clearance, mounting security, and the space behind the panel before modifying your vehicle. Vehicle-specific adapters or custom mounting work may be required.

Local Installation in Killeen, Texas

Best Auto Sound & Security offers local installation in Killeen, Texas. Call 254-213-0501 for help planning tweeter placement, crossover integration, and tuning. Installation and any additional required parts are quoted separately.
