Axxess AXAMP-FD2 Ford 6-Channel Amplifier Interface

Axxess AXAMP-FD2 6-Channel Amplifier Integration Interface

Upgrade your compatible Ford audio system with aftermarket amplifiers while retaining the original radio and vehicle features. The Axxess AXAMP-FD2 provides six channels of 5-volt RMS audio, plus an external bass knob for additional audio output level adjustment.

Compatibility: Check the Factory Audio System

Designed for compatible amplified and non-amplified systems in the Ford applications listed below. Not compatible with A2B factory amplifiers. Confirm your vehicle’s year, model, factory audio package, and connections before ordering; model year alone does not establish fitment.

Features and Specifications

• Six channels of 5V RMS audio output
• Non-fading, full-range outputs on channels 5 and 6
• Plug-and-play interface connection behind the radio in compatible applications
• No programming required
• Dual-color LED feedback indicator
• Input rating: 50W per channel; this is not an amplifier power-output rating
• DC amplifier turn-on trigger: 250mA
• Two-channel S/PDIF output for the front channels
• 1-year warranty

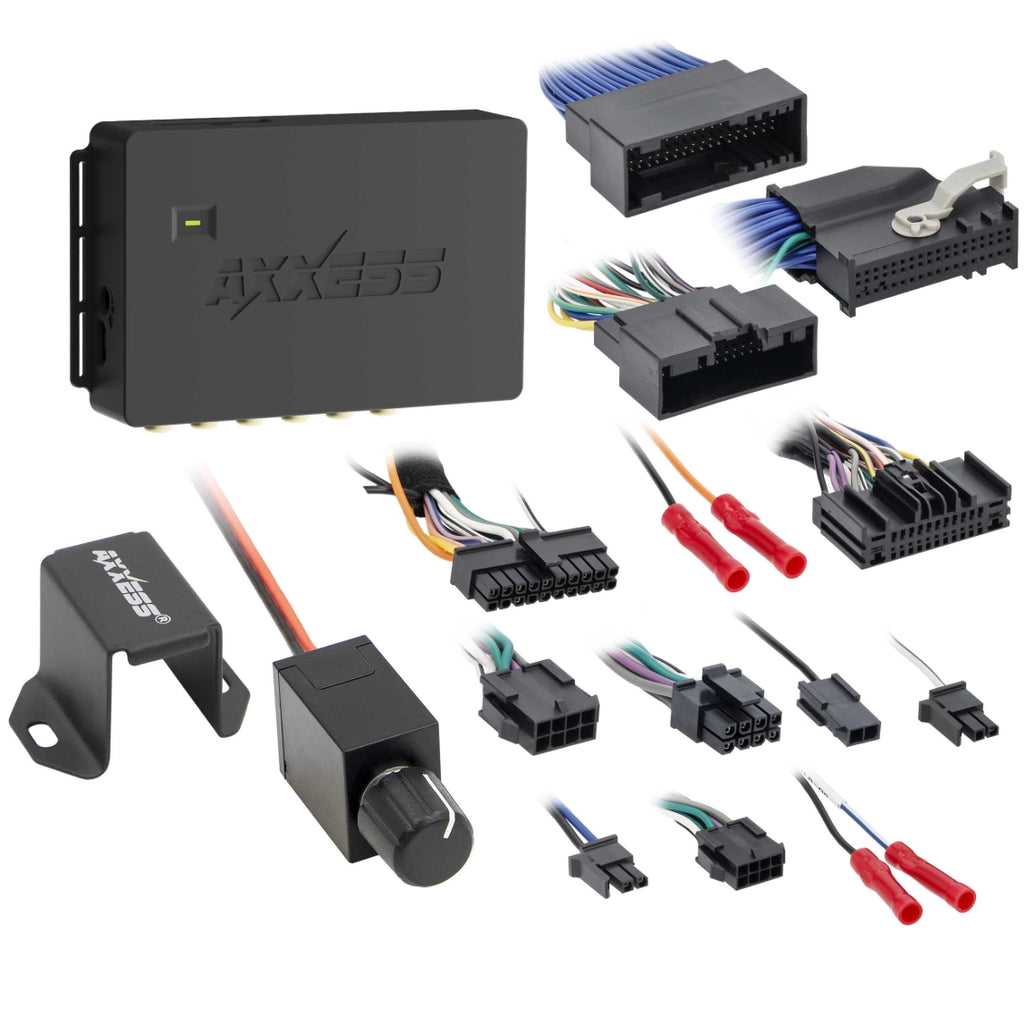

What’s Included

• Amplifier integration interface
• External bass knob
• Extension harnesses
• Instruction sheet

Ford Vehicle Applications

• 2013–2017 Ford C-Max
• 2011–2023 Ford Edge
• 2015–2019 Ford Escape
• 2015–2021 Ford Expedition
• 2011–2019 Ford Explorer
• 2013–2020 Ford F-150
• 2019 Ford F-250 Super Duty
• 2019 Ford F-350 Super Duty
• 2011–2019 Ford Fiesta
• 2013–2019 Ford Flex
• 2012–2018 Ford Focus
• 2013–2020 Ford Fusion
• 2015–2023 Ford Mustang
• 2019–2023 Ford Ranger
• 2013–2019 Ford Taurus

Installation Planning

This product is an amplifier integration interface, not a speaker-power amplifier. Plan the aftermarket amplifier, power wiring, fuse protection, and speaker connections separately for your system.

Local Installation Available

Best Auto Sound & Security offers local installation at our Killeen, Texas shop. Contact us to verify your factory audio configuration and plan an aftermarket amplifier upgrade around your original Ford radio.
