Wāvtech link6+ 6-Channel Line Output Converter

Wāvtech link6+ 6-Channel Line Output Converter

Keep your factory stereo while adding aftermarket amplifiers with the Wāvtech link6+. This 6-input, 6-output line output converter and matrix summing processor supports front, rear, and subwoofer systems, with flexible signal routing to help build the right amplifier inputs from your vehicle’s factory audio signals.

Factory Audio Integration

Some factory systems split the music across multiple speaker channels rather than providing a full-range signal at one location. The link6+ lets you assign input channels to outputs and combine signals through matrix summing. Its autoBASS circuit addresses factory bass roll-off, while the parametric EQ helps fine-tune the subwoofer signal.

Features and Controls

• 6-channel LOC and 6-in/6-out matrix summing processor
• 2-, 4-, or 6-channel input selection with Direct, Copy, or Sum modes
• Matrix summing with ±6dB level trim
• autoBASS bass roll-off correction and parametric EQ
• Multifunction remote supporting master volume, fader, AUX volume, independent channels 5/6 level, and source/function selection, depending on configuration
• 3.5mm AUX input
• Channels 5/6 “Never Zero” output feature with front and rear inputs
• Start-stop vehicle compatibility and Adaptive OEM Load Technology
• Differential balanced inputs and low-impedance outputs

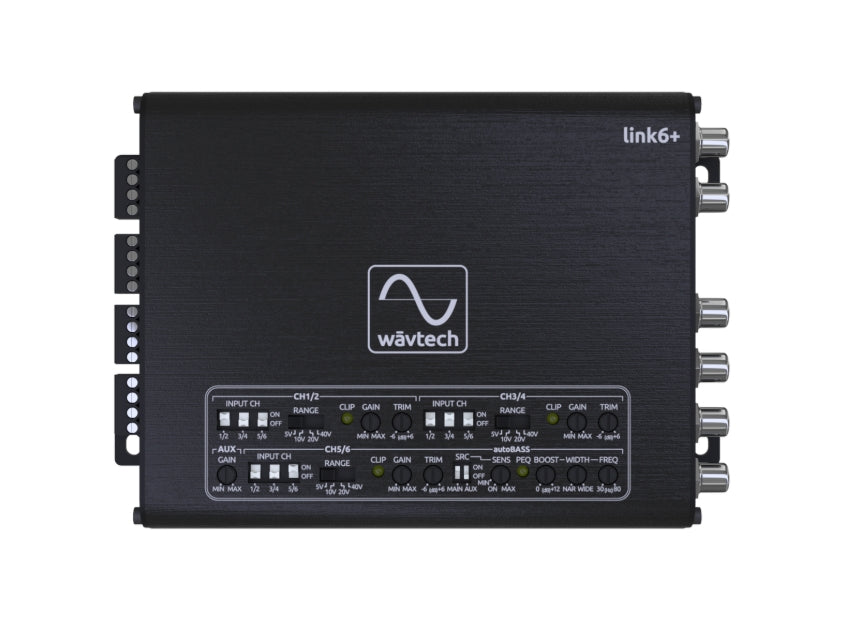

• Variable gain adjustments with clipping LEDs
• Automatic turn-on through DC-offset or audio signal detection, plus +12V trigger support
• Generated +12V remote output

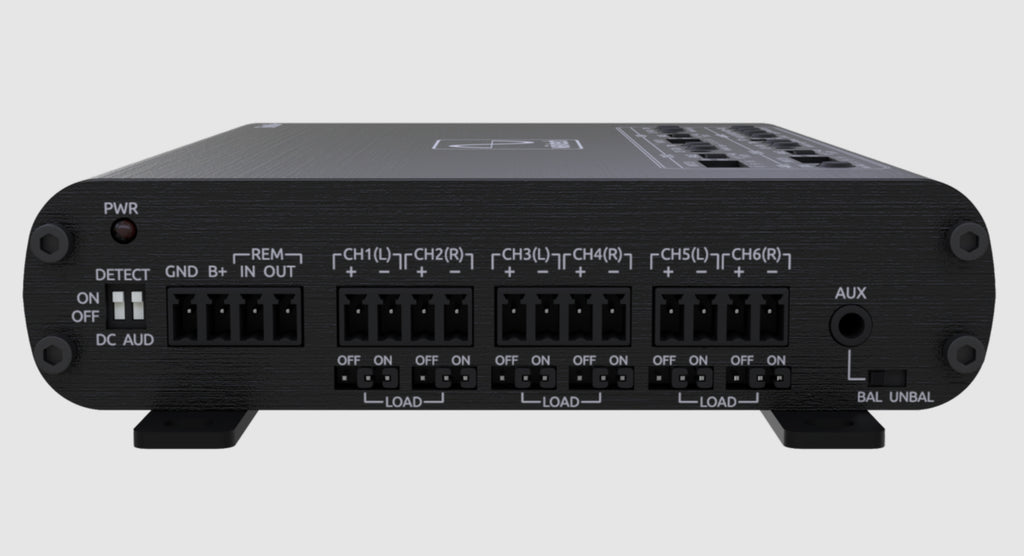

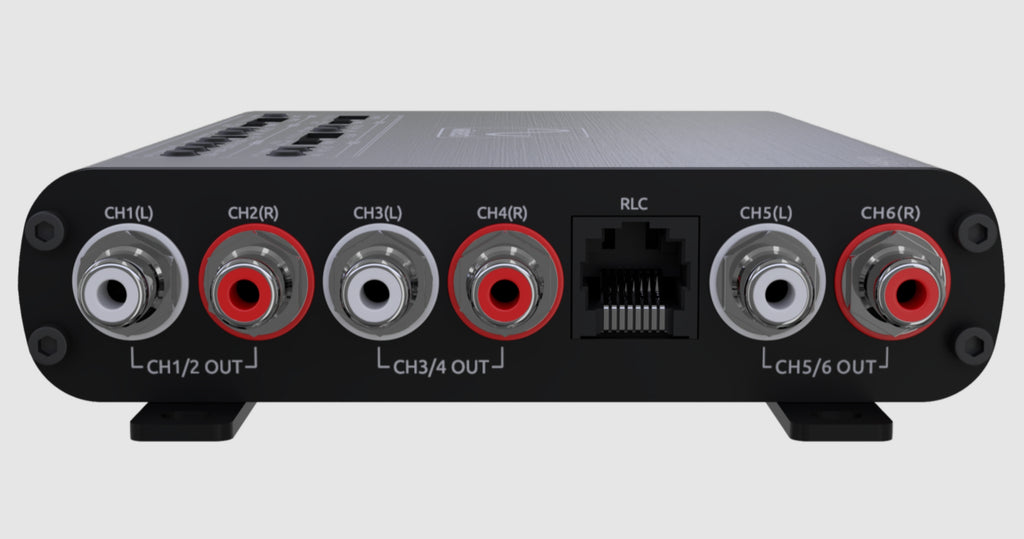

• Locking detachable power/speaker terminals and panel-mount RCA connectors
• Compact aluminum chassis with detachable mounting tabs

Technical Specifications

• Maximum output voltage: greater than 10Vrms
• Output impedance: less than 50 ohms
• Speaker input sensitivity ranges: 2–20Vrms / 4–40Vrms
• AUX input sensitivity: 0.5–5Vrms
• Maximum speaker input voltage: 40Vrms
• Frequency response: below 10Hz to 100kHz
• THD+N: less than 0.05% for speaker and AUX inputs
• Signal-to-noise ratio: greater than 114dBA speaker / 113dBA AUX
• Turn-on triggers: +12V, DC-offset, or audio detection
• Generated +12V output: greater than 500mA
• Chassis dimensions: 1.1 x 4.7 x 5.8 inches (29 x 120 x 148mm)

Plan Your Installation

Confirm your factory audio signal layout and integration requirements before installation. Input selection, summing, gain, and crossover settings need to suit your vehicle and aftermarket equipment; this is not a guarantee of plug-and-play compatibility with every factory system.

Local Installation Available

Want help retaining your factory radio while upgrading your sound? Best Auto Sound & Security offers local installation at our Killeen, Texas shop. Contact us to discuss your vehicle and amplifier setup.
