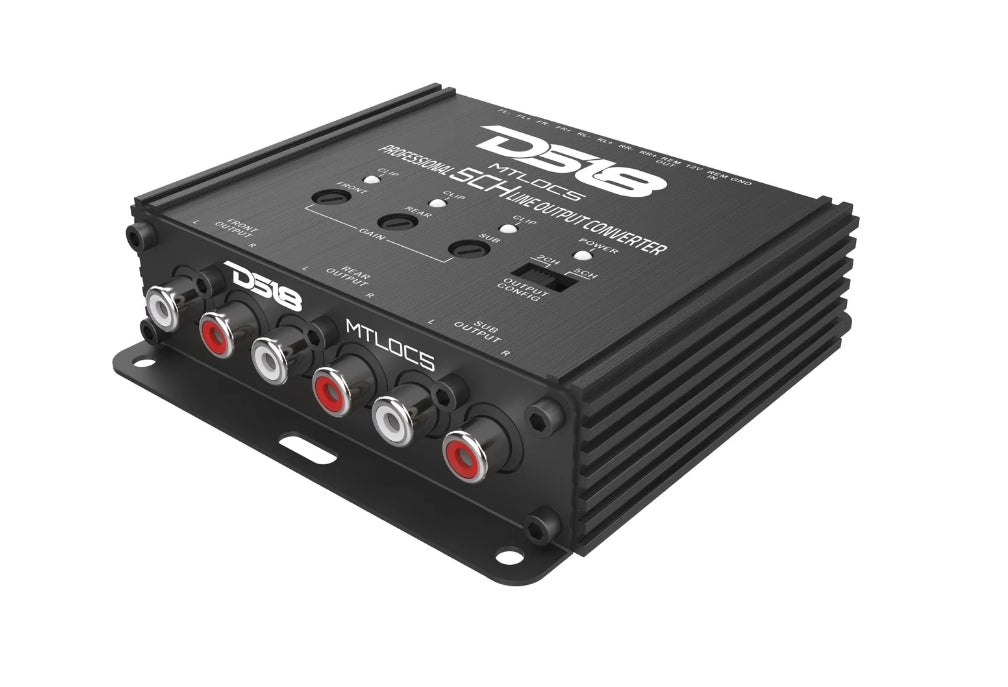

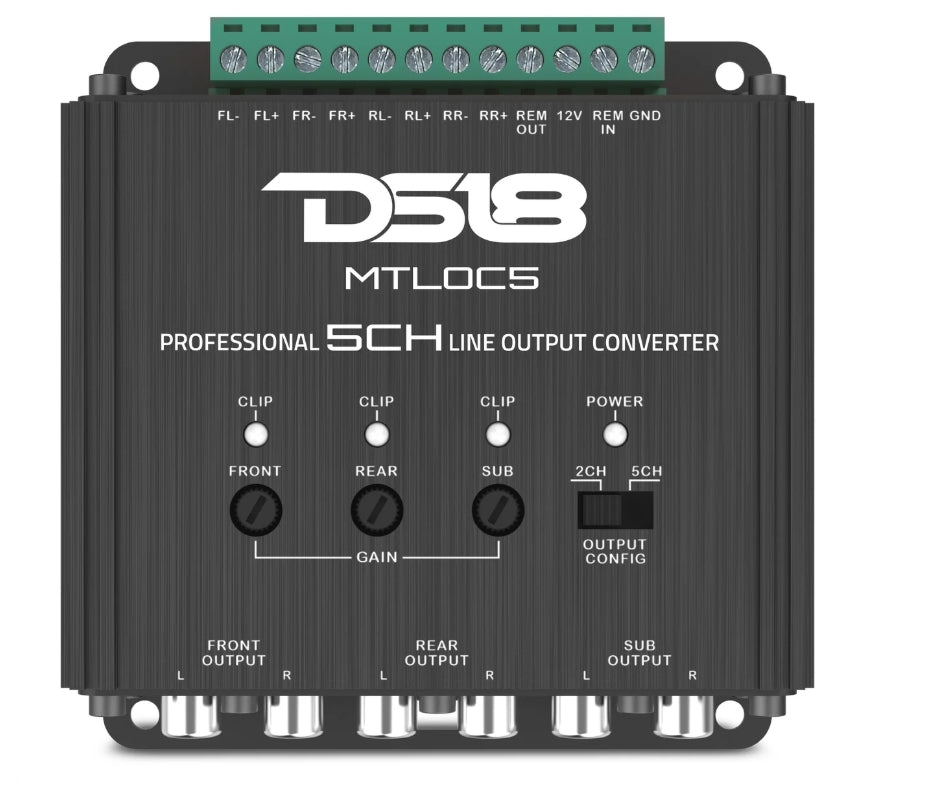

DS18 MTLOC5 5-Channel Line Output Converter

DS18 MTLOC5 5-Channel Line Output Converter

Keep your factory radio while adding aftermarket amplification. The DS18 MTLOC5 converts high-level speaker audio into low-level RCA signals for a multi-channel amplifier setup, with support for 2- or 5-channel factory input configurations.

Flexible Factory-Radio Integration

The MTLOC5 provides a signal-conversion solution when your factory system does not offer the RCA connections needed for your aftermarket amplifier. Choose the input configuration and turn-on method to suit your vehicle’s audio system and installation.

Features and Specifications

• 5-channel high-to-low-level line output conversion
• Supports 2- or 5-channel input configurations

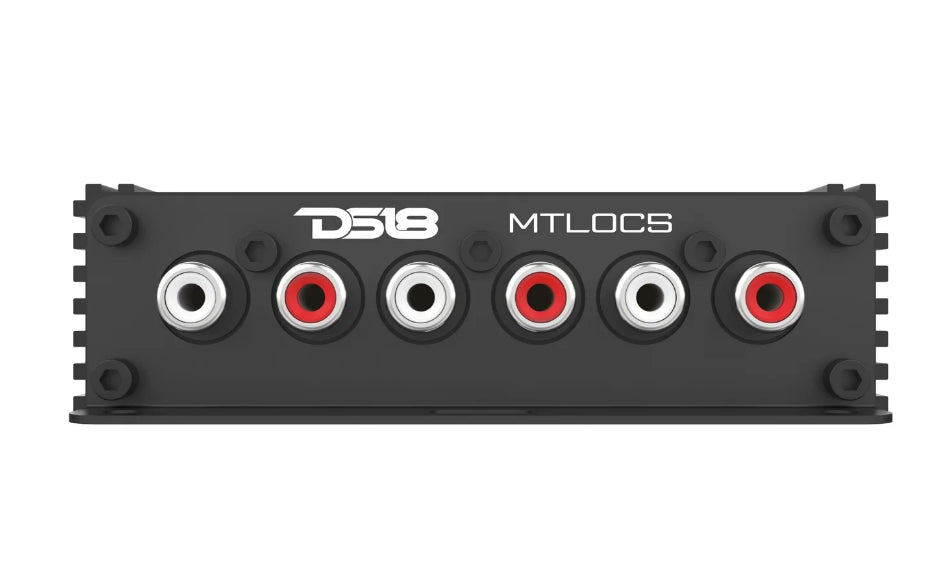

• Low-level RCA audio outputs for aftermarket amplifier integration
• Turn-on options: audio sensing, DC offset, or remote trigger
• Remote turn-on functionality for amplifier activation
• Rugged aluminum housing with surface-mount circuitry
• Noise-rejection design
• Frequency range: 10Hz–20kHz
• Listed total harmonic distortion: less than 0.01%

Plan Your Installation

The MTLOC5 is a line output converter, not a speaker-power amplifier or a vehicle-specific plug-and-play harness. Confirm the factory signal type, connection requirements, and appropriate input configuration before installation. Compatibility and fault-free operation should not be assumed for every vehicle or factory audio package.

Local Installation Available

Best Auto Sound & Security offers local installation at our Killeen, Texas shop. Contact us for help checking factory-radio compatibility, planning amplifier integration, and setting up your MTLOC5 for your vehicle.
